| TGB's profilation of this bike |
| The TGB X-LARGE scooter is powered by a 125cc 4 valve, liquid cooled engine and has a beautiful and elegant streamline shape. Described as Avant Garde and luxurious, the X-LARGE drives our future vision. |
|
General information |
|
Motorcycle name
|

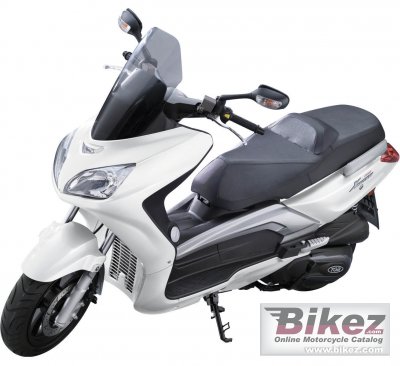

TGB X Large 125 EFI |
|
Model year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
12.2 HP (8.9 kW)) @ 8750 RPM |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
57.0 x 48.8 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Injection. EFI |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Compression and splash combined |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
174.0 kg (383.6 pounds) |
|
Power/weight ratio
|
0.0701 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1380 mm (54.3 inches) |
|
Overall length
|
2130 mm (83.9 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
White, silver, gray, black, red |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 7Ah battery |
|
Comments
|
TGB is an abbreviation of Taiwan Golden Bee. |
