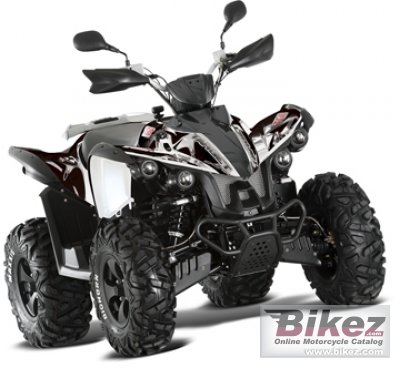

TGB Target 550 IRS 4x4 20122012 TGB Target 550 IRS 4x4 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | TGB Target 550 IRS 4x4 |
| Year | 2012 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 503.0 ccm (30.69 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 19.7 HP (14.4 kW)) @ 6000 RPM |
| Torque | 27.5 Nm (2.8 kgf-m or 20.3 ft.lbs) @ 3500 RPM |
| Compression | 9.9:1 |
| Bore x stroke | 92.0 x 76.5 mm (3.6 x 3.0 inches) |
| Fuel system | Injection. PFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electric CDI |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 4x4. Gear Selection L/H/N/R. CVT Automatic. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double AArm |
| Rear suspension | Double AArm |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 364.0 kg (802.5 pounds) |
| Power/weight ratio | 0.0541 HP/kg |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall height | 1300 mm (51.2 inches) |
| Overall length | 2030 mm (79.9 inches) |
| Overall width | 1250 mm (49.2 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | White, black |
| Starter | Electric |
| Comments | 4W/2WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. DC 12V 10A 120W electric outlet. Made in Taiwan. |
