General information |
|
Motorcycle name
|

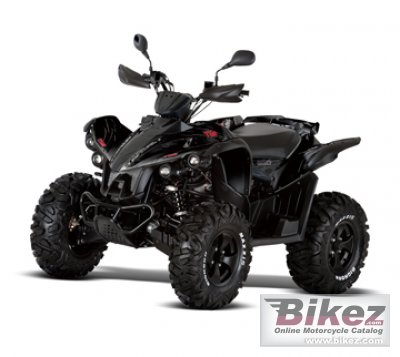

TGB Target 550 IRS |
|
Model year
|
2011 |
|
Category
|
ATV |
|
Rating
|
4.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
503.0 ccm (30.69 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
19.9 HP (14.5 kW)) @ 7000 RPM |
|
Bore x stroke
|
92.0 x 75.6 mm (3.6 x 3.0 inches) |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
4x4. L/H/N/R transmission shift. CVT |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Double A-Arm, IRS |
|
Front tire
|
25/8-12 |
|
Rear tire
|
22/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Alloy Wheels. |
|
Physical measures and capacities |
|
Dry weight
|
364.0 kg (802.5 pounds) |
|
Power/weight ratio
|
0.0545 HP/kg |
|
Seat height
|
918 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1300 mm (51.2 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Overall width
|
1250 mm (49.2 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
