| TGB's profilation of this bike |
| 2WD Road Legal Sports Quad Bike! |
|
General information |
|
Motorcycle name
|

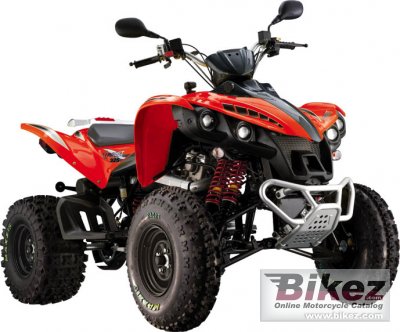

TGB Target 325 |
|
Year
|
2010 |
|
Category
|
ATV |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
325.0 ccm (19.83 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
21.5 HP (15.7 kW)) @ 6500 RPM |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Swing Arm, Chain Drive |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Power/weight ratio
|
0.0915 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1285 mm (50.6 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
1200 mm (47.2 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1260 mm (49.6 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
White/carbon |
|
Starter
|
Electric |
|
Comments
|
2WD. |
