| TGB's profilation of this bike |
| Our 49cc 2-stroke engine offers more horsepower and torque than a typical 4-stroke engine like our competitors are using to meet the new EPA requirements.
|
|
General moped information |
|
Motorcycle name
|

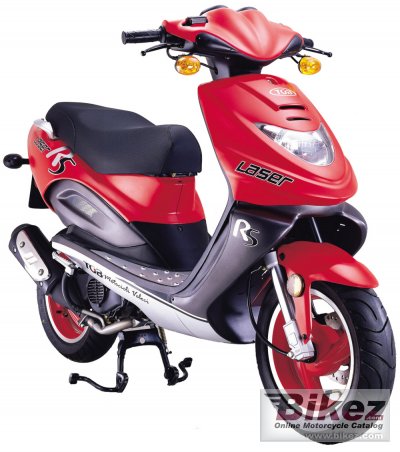

TGB Laser R5 49 |
|
Year
|
2008 |
|
Category
|
Scooter |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.3 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
4.9 HP (3.6 kW)) @ 7500 RPM |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Inverted Hydraulic Shocks |
|
Rear suspension
|
Mono Coil Over Shock |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
122.0 kg (268.9 pounds) |
|
Power/weight ratio
|
0.0402 HP/kg |
|
Overall length
|
1829 mm (72.0 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Other specifications |
|
Starter
|
Electric & kick |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 TGB Laser R5 49 discussion group or the general TGB discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this TGB moped
|
Touring capabilities for the 2008 TGB Laser R5 49:
 (66.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
