General moped information |
|
Model name
|

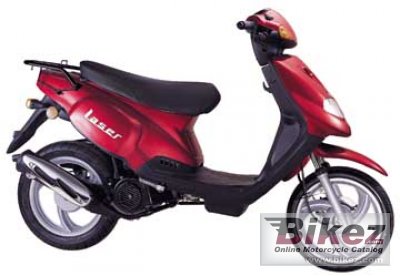

TGB Laser |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.3 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
4.9 HP (3.6 kW)) @ 7500 RPM |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
41.0 x 37.4 mm (1.6 x 1.5 inches) |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Compress and Splash Combined Type |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
C.V.T |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
80/80-14 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
86.0 kg (189.6 pounds) |
|
Power/weight ratio
|
0.0570 HP/kg |
|
Overall height
|
1170 mm (46.1 inches) |
|
Overall length
|
1875 mm (73.8 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Fuel capacity
|
6.80 litres (1.80 US gallons) |
|
Other specifications |
|
Color options
|
Red, Black, Blue |
|
Starter
|
Electric & kick |
