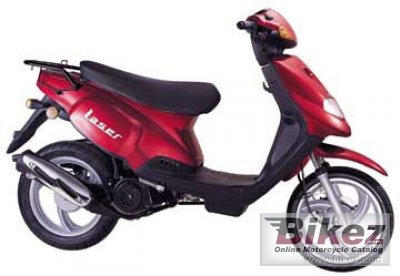

Picture credits - TGB. Click to submit more pictures.

2006 TGB Laser

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	TGB Laser
Year:	2006
Category:	Scooter
Rating:	62 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	151.00 ccm (9.21 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	8.60 HP (6.3 kW)) @ 7000 RPM
Compression:	10.8:1
Bore x stroke:	57.4 x 58.4 mm (2.3 x 2.3 inches)
Valves per cylinder:	1
Fuel system:	Carburettor
Lubrication system:	Compress and splash combined type
Cooling system:	Oil & air
Gearbox:	Automatic
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Front brakes:	Single disc
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Dry weight:	107.0 kg (235.9 pounds)
Power/weight ratio:	0.0804 HP/kg
Overall height:	1,160 mm (45.7 inches)
Overall length:	1,880 mm (74.0 inches)
Overall width:	715 mm (28.1 inches)
Fuel capacity:	6.80 litres (1.80 gallons)
Other specifications
Starter:	Electric & kick
Comments:	TGB is an abbreviation of Taiwan Golden Bee.
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 06 TGB Laser discussion group or the general TGB discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.
