TGB F409 20072007 TGB F409 specifications, pictures, reviews and rating |

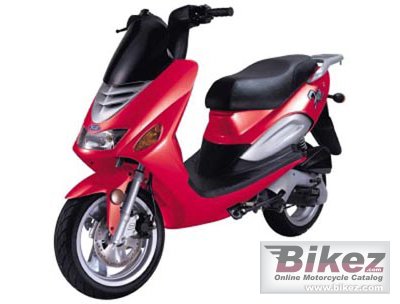

 2007 TGB F409. Picture credits - TGB. Submit more pictures. |
|
| General moped information | |
|---|---|
| Motorcycle name | TGB F409 |
| Year of manufacture | 2007 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 49.3 ccm (3.01 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 4.9 HP (3.6 kW)) @ 7500 RPM |
| Compression | 7.8:1 |
| Bore x stroke | 41.0 x 37.4 mm (1.6 x 1.5 inches) |
| Ignition | C.D.I |
| Lubrication system | Oil Pump Separate |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | C.V.T |
| Chassis, suspension, brakes and wheels | |
| Front tire | 120/60-13 |
| Rear tire | 120/60-13 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 94.0 kg (207.2 pounds) |
| Power/weight ratio | 0.0521 HP/kg |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 1890 mm (74.4 inches) |
| Overall width | 715 mm (28.1 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Color options | Red, Blue |
| Starter | Electric & kick |
