TGB F409 (150cc) 20072007 TGB F409 (150cc) specifications, pictures, reviews and rating |

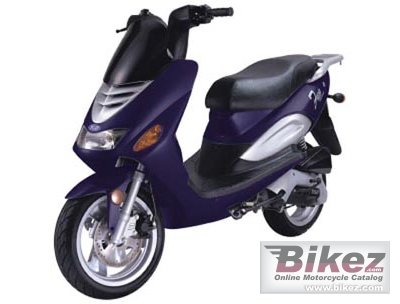

_Image%20credits%20-%20TGB.jpg "2007 TGB F409 (150cc)") 2007 TGB F409 (150cc). Picture credits - TGB. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | TGB F409 (150cc) |
| Year model | 2007 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 151.0 ccm (9.21 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 10.1 HP (7.4 kW)) @ 7500 RPM |
| Compression | 10.8:1 |
| Bore x stroke | 57.4 x 58.4 mm (2.3 x 2.3 inches) |
| Ignition | C.D.I |
| Lubrication system | Compress and Splash Combined Type |
| Cooling system | Oil & air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | C.V.T |
| Chassis, suspension, brakes and wheels | |
| Front tire | 120/60-13 |
| Rear tire | 120/60-13 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 117.0 kg (257.9 pounds) |
| Power/weight ratio | 0.0863 HP/kg |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 1890 mm (74.4 inches) |
| Overall width | 715 mm (28.1 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Color options | Red, Blue |
| Starter | Electric & kick |
