TGB F409 (125cc) 20072007 TGB F409 (125cc) specifications, pictures, reviews and rating |

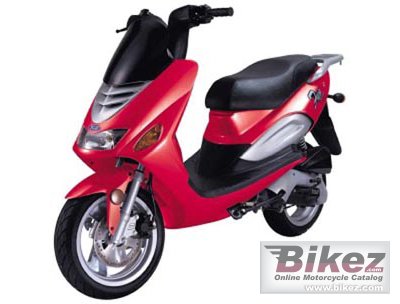

.jpg "2007 TGB F409 (125cc)")
| General information | |
|---|---|
| Model | TGB F409 (125cc) |
| Model year | 2007 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 8.6 HP (6.3 kW)) @ 7500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Ignition | C.D.I |
| Lubrication system | Compress and Splash Combined Type |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | C.V.T |
| Chassis, suspension, brakes and wheels | |
| Front tire | 120/60-13 |
| Rear tire | 120/60-13 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 107.0 kg (235.9 pounds) |
| Power/weight ratio | 0.0804 HP/kg |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 1890 mm (74.4 inches) |
| Overall width | 715 mm (28.1 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Color options | Red, Blue |
| Starter | Electric & kick |
