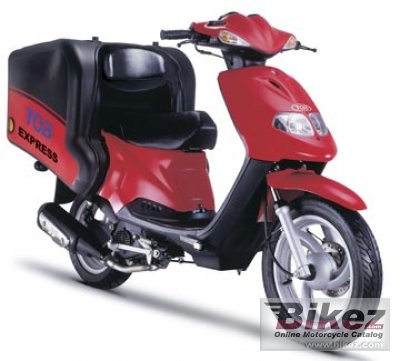

TGB Express 50 20112011 TGB Express 50 specifications, pictures, reviews and rating |
| TGB's profilation of this bike |
| As the meaning of the word, Delivery scooter has been specially designed for commercial use. It has purpose built frame for low gravity center and adapted rear-twin shock absorbers. Instead of one main stand, we equipped L/R latching side stands that have built-in engine cut off. |
| General moped information | |
|---|---|
| Motorcycle name | TGB Express 50 |
| Year | 2011 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 4.9 HP (3.6 kW)) |
| Compression | 9.2:1 |
| Bore x stroke | 41.0 x 37.4 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Separate oil pump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Emission details | EC and DOT/EPA approval |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Twin rear shock absorbers |
| Front tire | 3.00-14 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Wheels | Alloy wheels |
| Physical measures and capacities | |
| Dry weight | 105.0 kg (231.5 pounds) |
| Power/weight ratio | 0.0467 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1910 mm (75.2 inches) |
| Overall width | 660 mm (26.0 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Color options | Blue, red, yellow |
| Starter | Electric & kick |
| Electrical | 12 Volt |
| Carrying capacity | Top case of 150L |
| Comments | Made in Taiwan |
