| TGB's profilation of this bike |
| As the meaning of the word, Delivery scooter has been specially designed for commercial use. It has purpose built frame for low gravity center and adapted rear-twin shock absorbers. Instead of one main stand, we equipped L/R latching side stands that have built-in engine cut off. |
|
General information |
|
Motorcycle name
|

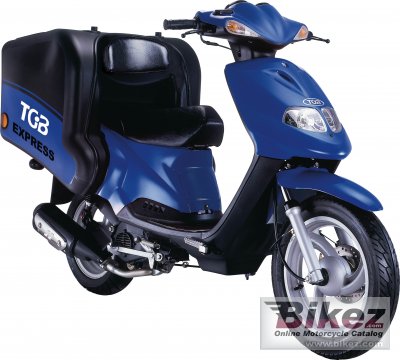

TGB Express 125 |
|
Year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
8.6 HP (6.3 kW)) @ 7500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
52.4 x 57.2 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure and splash combined |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
125.0 kg (275.6 pounds) |
|
Power/weight ratio
|
0.0688 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
1970 mm (77.6 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Fuel capacity
|
6.80 litres (1.80 US gallons) |
|
Other specifications |
|
Color options
|
Blue, red, yellow |
|
Starter
|
Electric & kick |
|
Comments
|
Also called TGB Delivery 125 and TGB Transcoot Deliver 125. |
