| TGB's profilation of this bike |

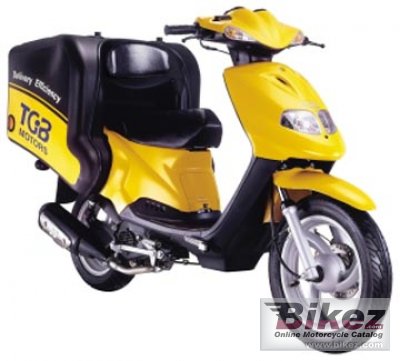

| As the meaning of the word, Delivery scooter has been specially designed for commercial use. It has purpose built frame for low gravity center and adapted rear-twin shock absorbers. Instead of one main stand, we equipped L/R latching side stands that have built-in engine cut off. Top case having 150L displacement would never limit your usage at all. Also foot-rests are included for driver comfort and improved handling/weight distribution. Maybe we should call it the most luxury scooter for commercial use. |
|
General moped information |
|
Model name
|
TGB Delivery |
|
Year
|
2007 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.3 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
4.9 HP (3.6 kW)) @ 7500 RPM |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
41.0 x 37.4 mm (1.6 x 1.5 inches) |
|
Ignition
|
C.D.I |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
C.V.T |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
105.0 kg (231.5 pounds) |
|
Power/weight ratio
|
0.0467 HP/kg |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
1910 mm (75.2 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Fuel capacity
|
6.80 litres (1.80 US gallons) |
|
Other specifications |
|
Color options
|
Red, Black, Blue |
|
Starter
|
Electric & kick |
