| TGB's profilation of this bike |
| As the meaning of the word, Delivery scooter has been specially designed for commercial use. It has purpose built frame for low gravity center and adapted rear-twin shock absorbers. Instead of one main stand, we equipped L/R latching side stands that have built-in engine cut off. |
|
General information |
|
Motorcycle name
|

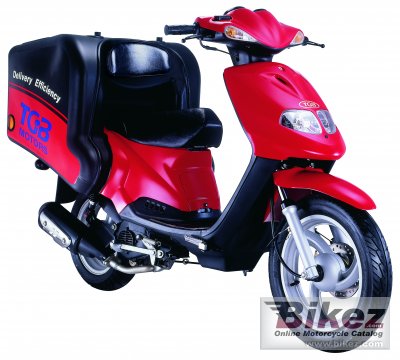

TGB Delivery |
|
Year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
151.0 ccm (9.21 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
10.1 HP (7.4 kW)) @ 7500 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
57.4 x 58.4 mm (2.3 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Oil & air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
121.0 kg (266.8 pounds) |
|
Power/weight ratio
|
0.0835 HP/kg |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
1970 mm (77.6 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Fuel capacity
|
10.40 litres (2.75 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
TGB is an abbreviation of Taiwan Golden Bee. |
