| TGB's profilation of this bike |
| This machine is built to cope with the most severe of conditions. |
|
General information |
|
Model name
|

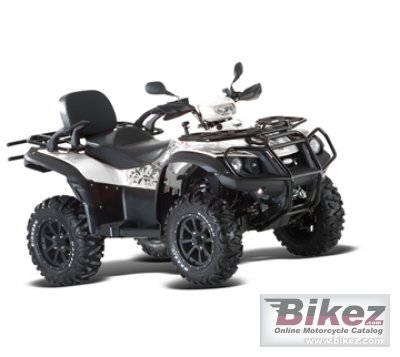

TGB Blade 550i LT 4x4 |
|
Model year
|
2012 |
|
Category
|
ATV |
|
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
503.0 ccm (30.69 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
18.9 HP (13.8 kW)) @ 5000 RPM |
|
Torque
|
31.5 Nm (3.2 kgf-m or 23.2 ft.lbs) @ 3200 RPM |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
92.0 x 75.6 mm (3.6 x 3.0 inches) |
|
Fuel system
|
Injection. PFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
4x4. CVT. L/H/N/R gear. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Double A-Arm |
|
Front tire
|
26/8-14 |
|
Rear tire
|
26/10-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Alloy Wheels. |
|
Physical measures and capacities |
|
Dry weight
|
364.0 kg (802.5 pounds) |
|
Power/weight ratio
|
0.0520 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1250 mm (49.2 inches) |
|
Overall length
|
2360 mm (92.9 inches) |
|
Overall width
|
1235 mm (48.6 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Other specifications |
|
Color options
|
Black, white, orange |
|
Starter
|
Electric |
|
Carrying capacity
|
Front and rear rack |
|
Factory warranty
|
2 years |
|
Comments
|
Switchable 2 or 4 WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. Winch. 12V 10A 120W electrical outlet. |
