| TGB's profilation of this bike |
| These machines are built to cope with the most severe of conditions. All are fully road legal, with unrivaled levels of specification, and deliver excellent value for money. |
|
General information |
|
Model name
|

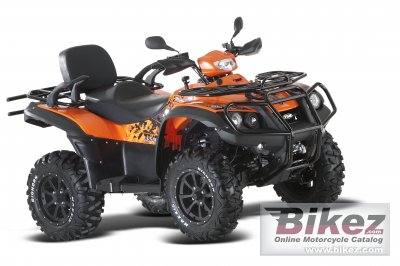

TGB Blade 550 LT |
|
Year
|
2011 |
|
Category
|
ATV |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
503.0 ccm (30.69 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
41.0 HP (29.9 kW)) |
|
Fuel system
|
Carburettor. Mikuni 36 mm |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
V-Belt CVT Auto. Locking Front Differential Selectable 2-4 WD. Gear Selection L / H / N / R / P. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Double A-Arm, IRS |
|
Front tire
|
26/8-14 |
|
Rear tire
|
26/10-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
364.0 kg (802.5 pounds) |
|
Power/weight ratio
|
0.1126 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1250 mm (49.2 inches) |
|
Overall length
|
2405 mm (94.7 inches) |
|
Overall width
|
1235 mm (48.6 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Factory warranty
|
2 years |
|
Comments
|
Switchable 2 or 4 WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. Alloy Wheels. Winch. |
