General information |
|
Motorcycle name
|

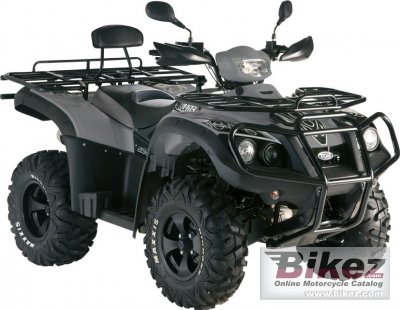

TGB Blade 525SE |
|
Model year
|
2010 |
|
Category
|
ATV |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
503.0 ccm (30.69 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
41.5 HP (30.3 kW)) @ 6500 RPM |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Double A-Arm, IRS |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
332.0 kg (731.9 pounds) |
|
Power/weight ratio
|
0.1250 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1250 mm (49.2 inches) |
|
Overall length
|
2290 mm (90.2 inches) |
|
Overall width
|
1235 mm (48.6 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
|
Color options
|
White/Carbon, Green/Carbon |
|
Comments
|
Switchable 2 or 4 WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. Alloy Wheels. Winch. |
