| TGB's profilation of this bike |
| You would have never seen a scooter like this before. Smooth, elegant and sporty appearance are the advantages what it behaves in public it’s essential equipment. Speedometers with chromed ring also upgrade the whole scooter’s quality. Wherever it’s rambling in the mountains or speeding on highways, elegance is the name of it. Yes, 303R is such a scooter assembled all in a harmony. Making people fall in love with it at the first sight.
Race Inspired Design
|
|
General information |
|
Motorcycle name
|

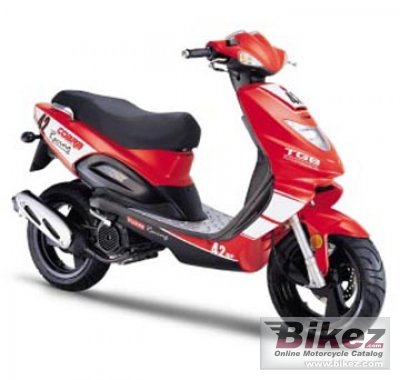

TGB 303R (125 cc) |
|
Year model
|
2007 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
8.6 HP (6.3 kW)) @ 7500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Compress and splash combined type |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
C.V.T |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
110.0 kg (242.5 pounds) |
|
Power/weight ratio
|
0.0782 HP/kg |
|
Overall height
|
1145 mm (45.1 inches) |
|
Overall length
|
1860 mm (73.2 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Fuel capacity
|
6.80 litres (1.80 US gallons) |
|
Other specifications |
|
Color options
|
Red, Black, Blue |
|
Starter
|
Electric & kick |
