| TGB's profilation of this bike |

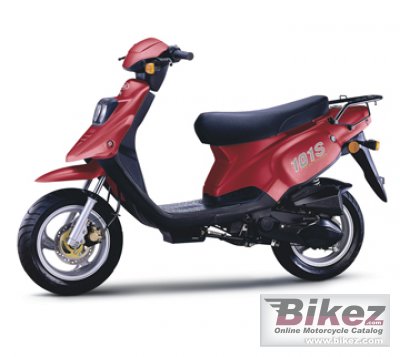

| The TGB 101S 50 offers style, performance and freedom in a budget 50cc, oil injected 2-stroke CVT off-road sport scooter. |
|
General moped information |
|
Model name
|
TGB 101S 50 |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.3 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
4.9 HP (3.6 kW)) @ 7500 RPM |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
41.0 x 37.4 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Seprate oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
81.0 kg (178.6 pounds) |
|
Weight incl. oil, gas, etc
|
87.0 kg (191.8 pounds) |
|
Power/weight ratio
|
0.0605 HP/kg |
|
Overall height
|
1075 mm (42.3 inches) |
|
Overall length
|
1695 mm (66.7 inches) |
|
Overall width
|
650 mm (25.6 inches) |
|
Fuel capacity
|
5.10 litres (1.35 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, blue, silver |
|
Starter
|
Electric & kick |
|
Instruments
|
Analogue |
|
Electrical
|
12 Vot 4 Ah battery |
|
Light
|
Dual headlights |
