TGB 101S 50 20102010 TGB 101S 50 specifications, pictures, reviews and rating |

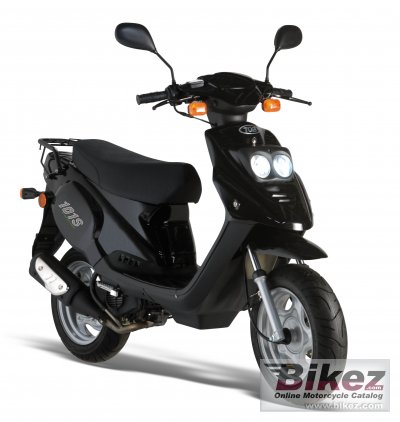

2010 TGB 101S 50. Image credits - TGB.
| TGB's profilation of this bike |
| The TGB 101S 50 offers style, performance and freedom in a budget 50cc, oil injected 2-stroke CVT off-road sport scooter. |
| General moped information | |
|---|---|
| Motorcycle name | TGB 101S 50 |
| Model year | 2010 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.3 ccm (3.01 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 4.9 HP (3.6 kW)) |
| Compression | 7.8:1 |
| Bore x stroke | 41.0 x 37.4 mm (1.6 x 1.5 inches) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 120/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 81.0 kg (178.6 pounds) |
| Weight incl. oil, gas, etc | 87.0 kg (191.8 pounds) |
| Power/weight ratio | 0.0605 HP/kg |
| Overall length | 1695 mm (66.7 inches) |
| Overall width | 650 mm (25.6 inches) |
| Fuel capacity | 5.10 litres (1.35 US gallons) |
| Other specifications | |
| Color options | Red, black, blue, silver |
| Starter | Electric & kick |
| Comments | Made in Taiwan. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 TGB 101S 50 discussion group or the general TGB discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
