| TGB's profilation of this bike |
| The TGB 101R 50 is a budget 50cc, 2 stroke, 2 seater sports scooter - with CVT automatic transmission, 12´ wheels, front disc brake, rear carry rack and underseat storage. Features both electric and kick start. |
|
General moped information |
|
Motorcycle name
|

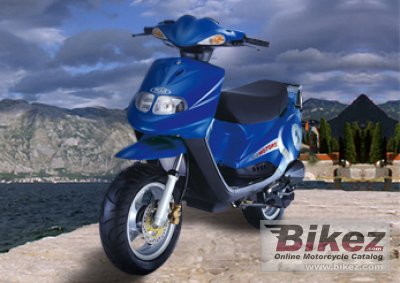

TGB 101R 50 |
|
Year model
|
2008 |
|
Type
|
Scooter |
|
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
10.1 HP (7.4 kW)) |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
41.0 x 37.4 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Mikuni 13 mm |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Inverted Hydraulic Shocks |
|
Rear suspension
|
Mono Coil Over Shock |
|
Front tire
|
130/60-13 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Power/weight ratio
|
0.1098 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1075 mm (42.3 inches) |
|
Overall length
|
1695 mm (66.7 inches) |
|
Overall width
|
650 mm (25.6 inches) |
|
Fuel capacity
|
5.10 litres (1.35 US gallons) |
|
Other specifications |
|
Color options
|
Blue/black |
|
Starter
|
Electric & kick |
