TGB 101R (125cc) 20072007 TGB 101R (125cc) specifications, pictures, reviews and rating |

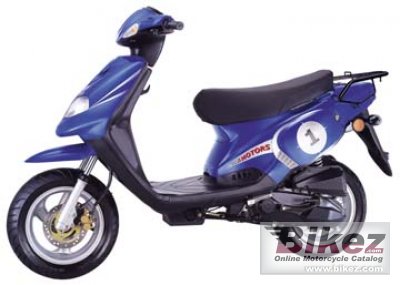

_Image%20credits%20-%20TGB.jpg "2007 TGB 101R (125cc)") 2007 TGB 101R (125cc). Picture credits - TGB. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | TGB 101R (125cc) |
| Year model | 2007 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 82.4 ccm (5.03 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 6.4 HP (4.7 kW)) @ 7500 RPM |
| Compression | 7.2:1 |
| Bore x stroke | 52.0 x 42.0 mm (2.0 x 1.7 inches) |
| Ignition | C.D.I |
| Lubrication system | Oil Pump Separate |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | C.V.T |
| Chassis, suspension, brakes and wheels | |
| Front tire | 120/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 81.0 kg (178.6 pounds) |
| Power/weight ratio | 0.0790 HP/kg |
| Overall height | 1075 mm (42.3 inches) |
| Overall length | 1695 mm (66.7 inches) |
| Overall width | 650 mm (25.6 inches) |
| Fuel capacity | 5.10 litres (1.35 US gallons) |
| Other specifications | |
| Color options | Red, Black, Blue |
| Starter | Electric & kick |
