| TGB's profilation of this bike |

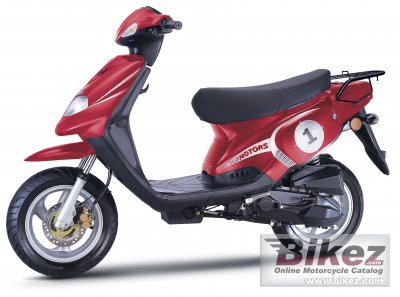

| The TGB 101R 125 is a budget 125cc, 4 stroke, 2 seater sports scooter |
|
General information |
|
Model name
|
TGB 101R 125 |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
8.6 HP (6.3 kW)) @ 7500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Lubrication system
|
Compress and splash combined |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Weight incl. oil, gas, etc
|
101.0 kg (222.7 pounds) |
|
Power/weight ratio
|
0.0925 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
1770 mm (69.7 inches) |
|
Overall width
|
680 mm (26.8 inches) |
|
Fuel capacity
|
5.10 litres (1.35 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, blue |
|
Starter
|
Electric & kick |
