TGB 101 R 2006

2006 TGB 101 R specifications, pictures, reviews and rating

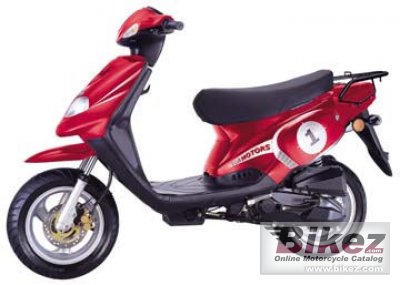

2006 TGB 101 R. Picture credits - TGB. Submit more pictures.

2006 TGB 101 R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Tip a friend
List related bikes

General information
Model:	TGB 101 R
Year:	2006
Category:	Scooter
Rating:	45.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	151.00 ccm (9.21 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	8.60 HP (6.3 kW)) @ 7000 RPM
Compression:	10.8:1
Bore x stroke:	57.4 x 58.4 mm (2.3 x 2.3 inches)
Fuel system:	Carburettor
Cooling system:	Oil & air
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Front tyre:	120/90-10
Rear tyre:	120/90-10
Front brakes:	Single disc
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Dry weight:	84.0 kg (185.2 pounds)
Power/weight ratio:	0.1024 HP/kg
Overall height:	1,140 mm (44.9 inches)
Overall length:	1,770 mm (69.7 inches)
Overall width:	680 mm (26.8 inches)
Fuel capacity:	5.10 litres (1.35 gallons)
Other specifications
Starter:	Electric & kick
Comments:	TGB is an abbreviation of Taiwan Golden Bee.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 06 TGB 101 R discussion group or the general TGB discussion group.
Related bikes	List related bikes for comparison of specs.

General information

Model:

TGB 101 R

Year:

2006

Category:

Scooter

Rating:

45.3 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

151.00 ccm (9.21 cubic inches)

Engine type:

Single cylinder, four-stroke

Power:

8.60 HP (6.3 kW)) @ 7000 RPM

Compression:

10.8:1

Bore x stroke:

57.4 x 58.4 mm (2.3 x 2.3 inches)

Fuel system:

Carburettor

Cooling system:

Oil & air

Transmission type,
final drive:

Belt

Chassis, suspension, brakes and wheels

Front tyre:

120/90-10

Rear tyre:

120/90-10

Front brakes:

Single disc

Rear brakes:

Expanding brake (drum brake)

Physical measures and capacities

Dry weight:

84.0 kg (185.2 pounds)

Power/weight ratio:

0.1024 HP/kg

Overall height:

1,140 mm (44.9 inches)

Overall length:

1,770 mm (69.7 inches)

Overall width:

680 mm (26.8 inches)

Fuel capacity:

5.10 litres (1.35 gallons)

Other specifications

Starter:

Electric & kick

Comments:

TGB is an abbreviation of Taiwan Golden Bee.
