| Terra Modena's profilation of this bike |

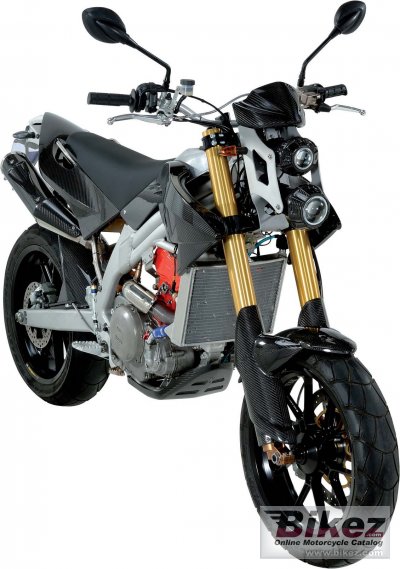

| The “198” is a powerful, high-tech, single-cylinder, motorbike designed for both road and track.
Fitted with high quality materials and components and using technology and design borrowed
from the unique traditions of Italy’s motor industry, the contours of the 198 were crafted in a
single pencil stroke that inspires harmony. |
|
General information |
|
Motorcycle name
|
Terra Modena 198 |
|
Model year
|
2011 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
449.6 ccm (27.43 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
98.0 x 59.6 mm (3.9 x 2.3 inches) |
|
Fuel system
|
Injection. Indirect injection. Dell’Orto Ø 50mm throttle body. |
|
Ignition
|
Magneti Marelli |
|
Lubrication system
|
Separate lubrication system with one pressure pump and two scavenge pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Surflex anti-hop clutch, with ergal cover; wet, multiple hydraulically operated plates. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Carbon fiber |
|
Rake (fork angle)
|
26.0° |
|
Front suspension
|
Ohlins upside-down front suspension fork with 46 mm diameter rods and adjustable compression, rebound and pre-stressing |
|
Rear suspension
|
Rear swinging fork and Ohlins DPS 46 mm single shock absorber fitted with inert gas cartridge and separator piston. |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Marchesini, in cast aluminium |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1185 mm (46.7 inches) |
|
Overall length
|
2150 mm (84.6 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Wheelbase
|
1048 mm (41.3 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V - 9Ah battery |
|
Comments
|
Italian made bike. |
