| Sym's profilation of this bike |
| Tonik is a delicate creation for fun, personal style and commuting. It comes with an upgraded engine and many other user-friendly designs. |
|
General moped information |
|
Motorcycle name
|

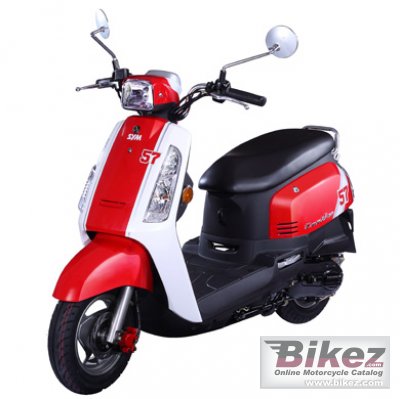

Sym Tonik 50 |
|
Year of manufacture
|
2012 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.5 ccm (3.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
6.7 HP (4.9 kW)) @ 7500 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
39.0 x 41.5 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. CV type, 18 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
90/90-10 |
|
Rear tire
|
90/90-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Power/weight ratio
|
0.0729 HP/kg |
|
Overall height
|
1040 mm (40.9 inches) |
|
Overall length
|
1735 mm (68.3 inches) |
|
Overall width
|
710 mm (28.0 inches) |
|
Wheelbase
|
1220 mm (48.0 inches) |
|
Fuel capacity
|
5.80 litres (1.53 US gallons) |
|
Other specifications |
|
Color options
|
Red/white, black/white, black, white |
|
Starter
|
Electric & kick |
|
Comments
|
Made in Taiwan. |
