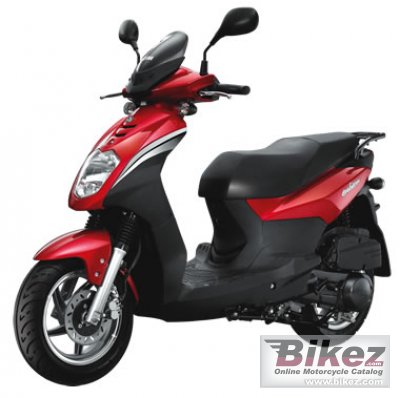

| Sym's profilation of this bike |
| The crystal and diamond-shaped headlights bring the sophisticate look. |
|
General moped information |
|
Model name
|
Sym Orbit 50 |
|
Model year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
2.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.5 ccm (3.02 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
39.0 x 41.5 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. CV type, 18 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube |
|
Front suspension
|
Telescopic Fork |
|
Rear suspension
|
Unit Swing Arm |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
100.0 kg (220.5 pounds) |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
1905 mm (75.0 inches) |
|
Overall width
|
690 mm (27.2 inches) |
|
Wheelbase
|
1319 mm (51.9 inches) |
|
Fuel capacity
|
5.20 litres (1.37 US gallons) |
|
Other specifications |
|
Color options
|
Red, white, dark blue |
|
Starter
|
Electric & kick |
|
Light
|
35/35W headlights |
|
Comments
|
Also called Symply. Made in Taiwan. |
