| Sym's profilation of this bike |
| Orbit/Symply is designed for daily use especially for those seeking agile and easy commuting in the city to meet the students and daily commuters’ needs
|
|
General moped information |
|
Model name
|

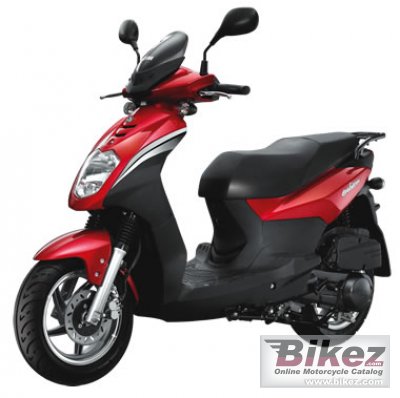

Sym Orbit 50 |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
|
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.5 ccm (3.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
39.0 x 41.5 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. CV type, 18 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
100.0 kg (220.5 pounds) |
|
Overall height
|
1020 mm (40.2 inches) |
|
Overall length
|
1906 mm (75.0 inches) |
|
Overall width
|
690 mm (27.2 inches) |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Fuel capacity
|
5.20 litres (1.37 US gallons) |
|
Other specifications |
|
Color options
|
Red, white, dark blue |
|
Starter
|
Electric & kick |
|
Comments
|
Also callled Symply. |
