| Sym's profilation of this bike |
| The 45-litre huge luggage box offers a huge space for 2 helmets or other entertainment accessories. The special designed dual-cushion improves the riding stability and could be adjusted depends on individual favorites. |
|
General information |
|
Model name
|

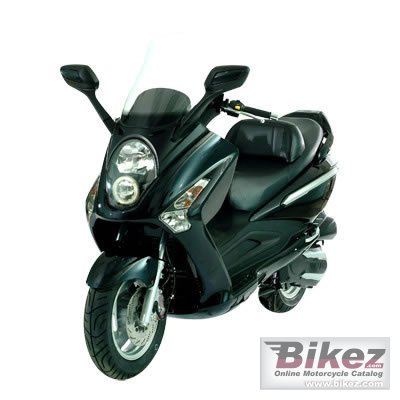

Sym Joymax 125 |
|
Year model
|
2010 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic Fork |
|
Rear suspension
|
Unit Swing Arm With 5-way Preload |
|
Front tire
|
110/90-13 |
|
Rear tire
|
130/70-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
163.0 kg (359.4 pounds) |
|
Overall height
|
1380 mm (54.3 inches) |
|
Overall length
|
2165 mm (85.2 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
