| Sym's profilation of this bike |
| Flat floor panel provides wide space for placing articles or resting foot during long trip. |
|
General information |
|
Motorcycle name
|

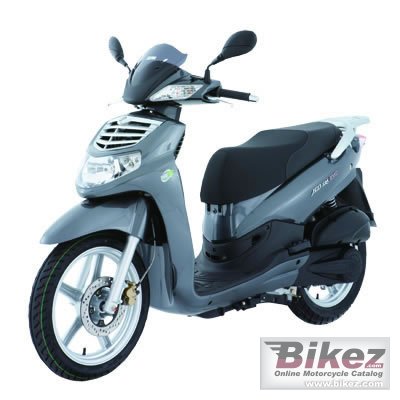

Sym HD Evo 200i |
|
Model year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
171.2 ccm (10.45 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Electroplated ceramic cylinder |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Automatic CVT |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic Fork |
|
Rear suspension
|
Unit Swing Arm |
|
Front tire
|
100/80-16 |
|
Rear tire
|
120/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
135.0 kg (297.6 pounds) |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2064 mm (81.3 inches) |
|
Overall width
|
706 mm (27.8 inches) |
|
Wheelbase
|
1385 mm (54.5 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Gray, white |
|
Starter
|
Electric |
|
Comments
|
Various option, eg. rear drum brake. Made in Taiwan. |
