| Sym's profilation of this bike |
| The double rear suspension give the comfort to all riders and the space for a full helmet is provided in the luggage box while the large fuel tanks will provide the long distance rider with convenience. |
|
General information |
|
Model name
|

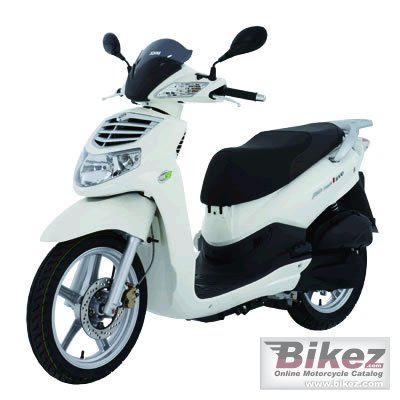

Sym HD Evo 125i |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.5 ccm (7.60 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Electroplated ceramic cylinder |
|
Output
|
12.5 HP (9.1 kW)) @ 8500 RPM |
|
Compression
|
10.5:1 |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic Fork |
|
Rear suspension
|
Unit Swing Arm |
|
Front tire
|
100/80-16 |
|
Rear tire
|
120/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc. Optional 130 mm drum |
|
Diameter
|
220 mm (8.7 inches) |
|
Seat
|
2-person seat |
|
Physical measures and capacities |
|
Dry weight
|
135.0 kg (297.6 pounds) |
|
Weight incl. oil, gas, etc
|
142.0 kg (313.1 pounds) |
|
Power/weight ratio
|
0.0926 HP/kg |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2064 mm (81.3 inches) |
|
Overall width
|
706 mm (27.8 inches) |
|
Wheelbase
|
1385 mm (54.5 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Gray, white |
|
Starter
|
Electric |
|
Light
|
12V 55W/ 60W headlights |
|
Comments
|
Scooter made in Taiwan. |
