General information |
|
Model
|

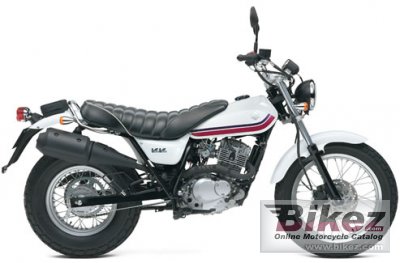

Suzuki VanVan 200 |
|
Year of manufacture
|
2012 |
|
Type
|
Allround |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
199.0 ccm (12.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
16.0 HP (11.7 kW)) @ 8000 RPM |
|
Torque
|
15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 6500 RPM |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
66.0 x 58.2 mm (2.6 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
91 mm (3.6 inches) |
|
Front suspension
|
Telescopic, coil spring, oil damped |
|
Rear suspension
|
Swingarm type, coil spring, oil damped |
|
Front tire
|
130/80-18 |
|
Rear tire
|
180/80-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
128.5 kg (283.3 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2140 mm (84.3 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Wheelbase
|
1750 mm (68.9 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Oil capacity
|
1.40 litres (1.48 US quarts) |
|
