General information |
Motorcycle name
|

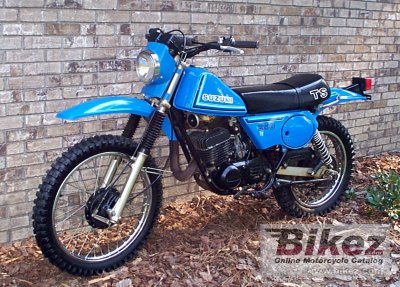

Suzuki TS 250 ER |
Model year
|
1980 |
Category
|
Trial |
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
246.0 ccm (15.01 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Engine details
|
Reed valve. |
Power output
|
16.5 HP (12.0 kW)) @ 6000 RPM |
Top speed
|
107.0 km/h (66.5 mph) |
Compression
|
7.0:1 |
Bore x stroke
|
70.0 x 64.0 mm (2.8 x 2.5 inches) |
Fuel system
|
Injection |
Fuel control
|
Membrane |
Lubrication system
|
Fuel/oil mix, Posi-force, CCI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multi-plate |
Driveline
|
Constant mesh |
Exhaust system
|
Single pipe, high drawn |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
29.0° |
Trail
|
142 mm (5.6 inches) |
Front suspension
|
Telescopic fork, leading axle oil damped |
Rear suspension
|
Swingarm, dual shocks, coil springs, 5-way adjustable |
Front tire
|
3.00-21. |
Rear tire
|
4.00-18 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake |
Physical measures and capacities |
Dry weight
|
121.0 kg (266.8 pounds) |
Weight incl. oil, gas, etc
|
133.0 kg (293.2 pounds) |
Power/weight ratio
|
0.1364 HP/kg |
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
Ground clearance
|
254 mm (10.0 inches) |
Wheelbase
|
1401 mm (55.2 inches) |
Fuel capacity
|
7.50 litres (1.98 US gallons) |
Oil capacity
|
850.00 litres (898.19 US quarts) |
Other specifications |
Electrical
|
6V 4Ah battery. |
