General information |
|
Model
|

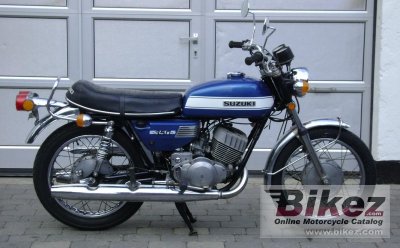

Suzuki T 350 R |
|
Year model
|
1971 |
|
Type
|
Classic |
|
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
315.0 ccm (19.22 cubic inches) |
|
Type of engine
|
Twin, two-stroke |
|
Effect
|
40.0 HP (29.2 kW)) @ 7500 RPM |
|
Torque
|
39.2 Nm (4.0 kgf-m or 28.9 ft.lbs) @ 6500 RPM |
|
Top speed
|
168.0 km/h (104.4 mph) |
|
1/4 mile (0.4 km)
|
13.80 seconds |
|
Maximum RPM
|
8000 |
|
Compression
|
6.9:1 |
|
Bore x stroke
|
61.0 x 54.0 mm (2.4 x 2.1 inches) |
|
Fuel system
|
Carburettor. two Mikuni VM32SH |
|
Fuel control
|
Port control |
|
Ignition
|
Points |
|
Lubrication system
|
Suziki C.C.I oil injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc |
|
Exhaust system
|
Double chrome steel pipes |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.7 inches) |
|
Front suspension
|
telescopic fork with hydraulic damper |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Swinging arm with adjustable hydraulic shocks |
|
Front tire
|
3.00-18 |
|
Rear tire
|
3.50-18 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
154.0 kg (339.5 pounds) |
|
Power/weight ratio
|
0.2597 HP/kg |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
| Update specs | Report missing specs or required updates. |
|
