General information |
|
Motorcycle name
|

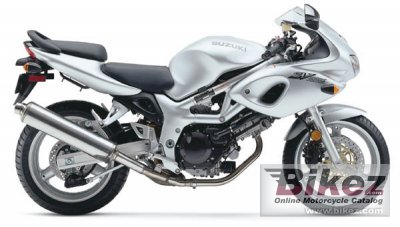

Suzuki SV 650 S |
|
Year model
|
2002 |
|
Type
|
Allround |
|
Rating
|
4.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
645.0 ccm (39.36 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 7200 RPM |
|
Top speed
|
206.0 km/h (128.0 mph) |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
81.0 x 62.6 mm (3.2 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital transistorized |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Fuel consumption
|
4.65 litres/100 km (21.5 km/l or 50.59 mpg) |
|
Greenhouse gases
|
107.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium, trellis |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Telescopic, coil spring, oil damped, fully adjustable preload |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Link-type, 7-way adjustable spring preload |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
290 mm (11.4 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
162.0 kg (357.1 pounds) |
|
Weight incl. oil, gas, etc
|
175.0 kg (385.8 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2045 mm (80.5 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Oil capacity
|
2.40 litres (2.54 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Spark plugs
|
NGK, CR8E |
|
Idle speed
|
1300 +/- 100 RPM |
|
Chain links
|
108 |
|
Sprockets
|
15/44 (front/rear) |
|
Tire pressure front
|
33 PSI (2.3 Bar or 225 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
