Suzuki's profilation of this bike |
90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact. |
General information |
Motorcycle name
|

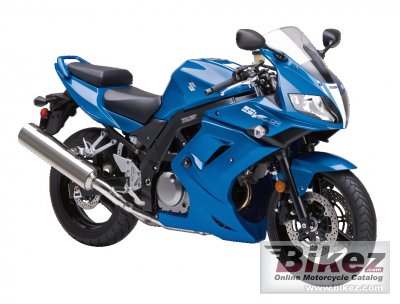

Suzuki SV650SF ABS |
Year model
|
2011 |
Type
|
Naked bike |
Price as new | US$ 7999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
645.0 ccm (39.36 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
90-degree V-twin |
Bore x stroke
|
81.0 x 62.6 mm (3.2 x 2.5 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
DID525V8, 114 links |
Exhaust system
|
Lightweight 2-into-1 |
Chassis, suspension, brakes and wheels |
Frame type
|
Link-type single-shock rear suspension with 7-way adjustable preload |
Rake (fork angle)
|
23.9° |
Trail
|
97 mm (3.8 inches) |
Front suspension
|
41 mm front fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Link-type single-shock rear suspension with 7-way adjustable preload |
Front tire
|
120/60-ZR17 |
Rear tire
|
160/60-ZR17 |
Front brakes
|
Double disc. ABS |
Diameter
|
290 mm (11.4 inches) |
Rear brakes
|
Single disc. ABS |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
203.0 kg (447.5 pounds) |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height
|
650 mm (25.6 inches) |
Overall length
|
2120 mm (83.5 inches) |
Overall width
|
730 mm (28.7 inches) |
Ground clearance
|
155 mm (6.1 inches) |
Wheelbase
|
1470 mm (57.9 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Other specifications |
Color options
|
Blue |
Starter
|
Electric |
Factory warranty
|
12 Month Limited Warranty |
Update specs | Report missing specs or required updates. |
