| General information |
|---|

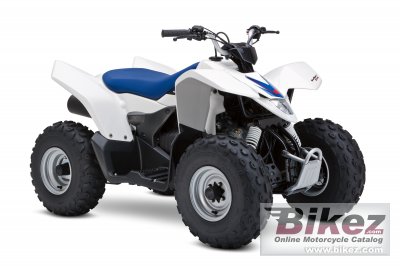

| Model: | Suzuki QuadSport Z90 |
| Year: | 2011 |
| Category: | ATV |
| Price as new: | US$ 2499. UK £ 2399. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 90.0 ccm (5.49 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.5:1 |
| Bore x stroke: | 45.5 x 55.2 mm (1.8 x 2.2 inches) |
| Fuel system: | Carburettor. MIKUNI VM16, single |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Shaft drive (cardan) |
| Driveline: | RK530, 60 links |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride |
| Front suspension: | Independent, swing axle, coil spring, oil damped |
| Rear suspension: | Swingarm type, coil spring, oil damped |
| Front tire: | 19/7-8 |
| Rear tire: | 19/7-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 127.0 kg (280.0 pounds) |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Overall length: | 1505 mm (59.3 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1005 mm (39.6 inches) |
| Fuel capacity: | 6.00 litres (1.59 gallons) |
| Other specifications |
|---|
| Color options: | Yellow, White |
| Starter: | Electric |
| Factory warranty: | 12 month limited warranty. |
| Comments: | A special edition with black paint is available. |
