General information |
|
Model
|

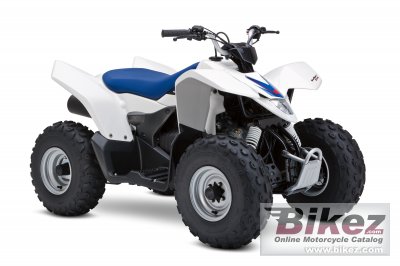

Suzuki QuadSport Z90 |
|
Year model
|
2009 |
|
Type
|
ATV |
| Price as new | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
90.0 ccm (5.49 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
45.5 x 55.2 mm (1.8 x 2.2 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent, swing axle, coil spring, oil damped |
|
Rear suspension
|
Swingarm type, coil spring, oil damped |
|
Front tire
|
19/7-AT10 |
|
Rear tire
|
19/10-AT9 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
127.0 kg (280.0 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall height
|
915 mm (36.0 inches) |
|
Overall length
|
1505 mm (59.3 inches) |
|
Overall width
|
875 mm (34.4 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1005 mm (39.6 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Yellow, White |
| Update specs | Report missing specs or required updates. |
|
