| General moped information |
|---|

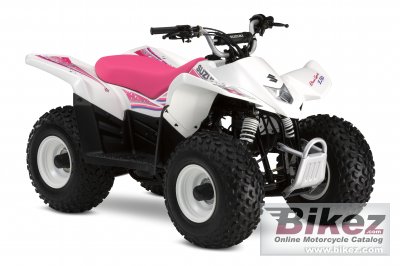

| Model: | Suzuki QuadSport Z50 Special Edition |
| Year: | 2009 |
| Category: | ATV |
| Price as new: | US$ 1899. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.0 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 36.0 x 48.6 mm (1.4 x 1.9 inches) |
| Lubrication system: | Splash |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent, swing axle, coil spring, oil damped |
| Rear suspension: | Swingarm type, coil spring, oil damped |
| Front tyre: | 16/7-AT10 |
| Rear tyre: | 16/10-AT9 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 78.0 kg (172.0 pounds) |
| Seat height: | 535 mm (21.1 inches) If adjustable, lowest setting. |
| Overall length: | 1270 mm (50.0 inches) |
| Ground clearance: | 120 mm (4.7 inches) |
| Fuel capacity: | 2.60 litres (0.69 gallons) |
| Other specifications |
|---|
| Color options: | White |
