Suzuki KingQuad 750AXi Limited 20092009 Suzuki KingQuad 750AXi Limited specifications, pictures, reviews and rating |

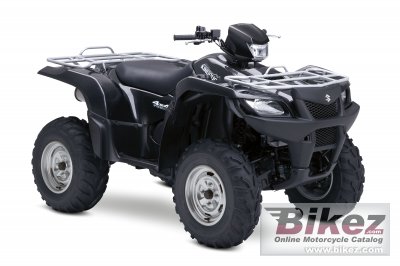

2009 Suzuki KingQuad 750AXi Limited. Image credits - Suzuki.
| Suzuki's profilation of this bike |
| Distinctive Black Brush bodywork is combined with durable-coated silver finish cargo racks. |
| General information | |
|---|---|
| Motorcycle name | Suzuki KingQuad 750AXi Limited |
| Model year | 2009 |
| Category | ATV |
| Price as new | US$ 8099. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 722.0 ccm (44.06 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Independent, double wishbone, coil spring, oil damped |
| Front tire | 25/8-AT12 |
| Rear tire | 25/10-AT12 |
| Front brakes | Double disc |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 302.0 kg (665.8 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 270 mm (10.6 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | Brushed Black |
| Starter | Electric |
| Comments | 2WD, 4WD and 4WD lock. |
