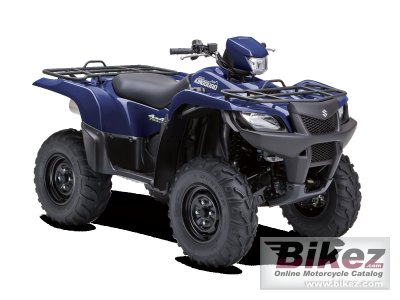

Suzuki KingQuad 750AXi 20122012 Suzuki KingQuad 750AXi specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The 2012 Suzuki KingQuad 750AXi is engineered to tackle the toughest jobs and nastiest trails without breaking a sweat. It’s loaded with technologically advanced features for impressive all-around performance. |
| General information | |
|---|---|
| Model | Suzuki KingQuad 750AXi |
| Year model | 2012 |
| Type | ATV |
| Price as new | US$ 8399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 722.0 ccm (44.06 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Automatic variable ratio (V-belt), with high-/low-range, and reverse |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride. |
| Front suspension | Independent, double A-Arm, coil spring, oil damped |
| Rear suspension | Fully independent A-Arm and I-Beam rear suspension with five-way preload-adjustable shock absorbers |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 302.0 kg (665.8 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 270 mm (10.6 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | Terra Green, Great Blue, and Flame Red |
| Starter | Electric |
| Factory warranty | 12 month limited warranty. |
| Comments | Optional power steering and camo colours. |
