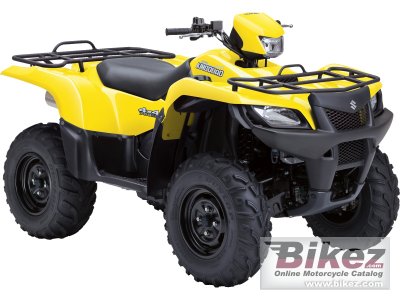

Suzuki KingQuad 750AXi 20112011 Suzuki KingQuad 750AXi specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The 2011 Suzuki KingQuad 750AXi is engineered to tackle the toughest jobs and nastiest trails without breaking a sweat. It’s loaded with technologically advanced features for impressive all-around performance: the fuel-injected 722cc engine, housed inside the high-tensile steel frame, develops abundant torque (especially in the low- to mid-rpm range), which gives the 750AXi exceptional performance. |
| General information | |
|---|---|
| Model name | Suzuki KingQuad 750AXi |
| Year model | 2011 |
| Type | ATV |
| Price as new | US$ 8199. Euro 9999. UK £ 7999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 722.0 ccm (44.06 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Fuel system | Injection. Suzuki Fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Automatic variable ratio (V-belt), with high-/low-range, and reverse |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride. |
| Front suspension | Independent, double A-Arm, coil spring, oil damped |
| Rear suspension | Fully independent A-Arm and I-Beam rear suspension with five-way preload-adjustable shock absorbers |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 302.0 kg (665.8 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall height | 750 mm (29.5 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 270 mm (10.6 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | Champion Yellow, Great Blue, Black and White |
| Starter | Electric |
| Factory warranty | 12 month limited warranty. |
| Comments | Optional power steering and camo colours. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Suzuki KingQuad 750AXi discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2011 Suzuki KingQuad 750AXi discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Suzuki bike | |
Fun-factor for the 2011 Suzuki KingQuad 750AXi:  (70.0 out of 100)Click here for complete rating. |
|
