Suzuki KingQuad 750AXi 20092009 Suzuki KingQuad 750AXi specifications, pictures, reviews and rating |

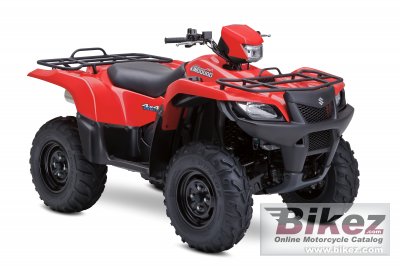

2009 Suzuki KingQuad 750AXi. Image credits - Suzuki.
| Suzuki's profilation of this bike |
| This new KingQuad 750 is designed to be not only the best all-around sport/utility ATV currently made, but the best QuadRunner ATV Suzuki has ever manufactured. |
| General information | |
|---|---|
| Motorcycle name | Suzuki KingQuad 750AXi |
| Year model | 2009 |
| Type | ATV |
| Price as new | US$ 7699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 722.0 ccm (44.06 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Independent, double wishbone, coil spring, oil damped |
| Front tire | 25/8-12 (AT) |
| Rear tire | 25/8-10 (AT) |
| Front brakes | Double disc |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 302.0 kg (665.8 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall height | 1245 mm (49.0 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 270 mm (10.6 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | Green, Red |
| Starter | Electric |
| Comments | Drive mode 4WD and 4WD lock. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Suzuki KingQuad 750AXi discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
