Suzuki KingQuad 500AXi Power Steering 20092009 Suzuki KingQuad 500AXi Power Steering specifications, pictures, reviews and rating |

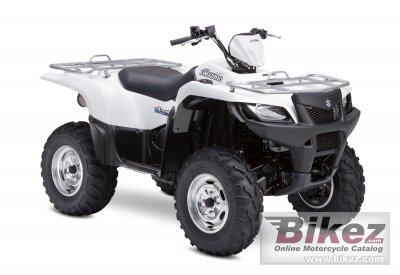

2009 Suzuki KingQuad 500AXi Power Steering. Image credits - Suzuki.
| Suzuki's profilation of this bike |
| Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support |
| General information | |
|---|---|
| Motorcycle name | Suzuki KingQuad 500AXi Power Steering |
| Year of manufacture | 2009 |
| Type | ATV |
| Price as new | US$ 7599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 493.0 ccm (30.08 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 87.5 x 82.0 mm (3.4 x 3.2 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic ignition |
| Lubrication system | Wet Sump |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Independent, double wishbone, coil spring, oil damped |
| Front tire | 25/8-AT12 |
| Rear tire | 25/10-AT12 |
| Front brakes | Double disc |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 300.0 kg (661.4 pounds) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall height | 1285 mm (50.6 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | White |
| Starter | Electric |
| Comments | 2WD, 4WD and differential-lock 4WD |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Suzuki KingQuad 500AXi Power Steering discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
