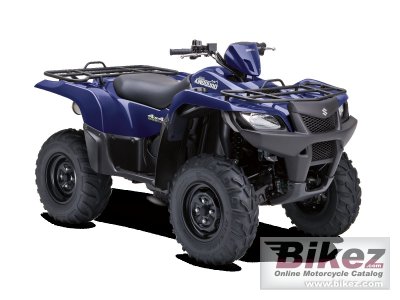

Suzuki KingQuad 500AXi 20122012 Suzuki KingQuad 500AXi specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The 500AXi offers plenty of class-leading features and its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent front and rear suspension; a QuadMatic™ CVT-type automatic transmission; locking front differential; and a host of other valuable features place the KingQuad 500AXi at the front of the pack. |
| General information | |
|---|---|
| Model name | Suzuki KingQuad 500AXi |
| Year | 2012 |
| Category | ATV |
| Price as new | US$ 7799. UK £ 6499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 493.0 ccm (30.08 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | CVT (V-belt), with high-/low-range, and reverse |
| Chassis, suspension, brakes and wheels | |
| Frame type | Independent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment. |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Independent, double wishbone, coil spring, oil damped |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 305.0 kg (672.4 pounds) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Color options | Terra Green, Great Blue, Flame Red |
| Starter | Electric |
| Factory warranty | 12 month limited warranty. |
| Comments | Optional power steering and camo paint. |
