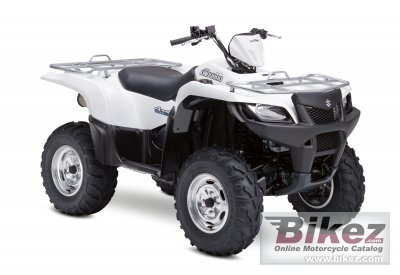

Suzuki KingQuad 500AXi 20112011 Suzuki KingQuad 500AXi specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Boasting the same advanced technology as the extraordinary KingQuad 750AXi, the new 2011 Suzuki KingQuad 500AXi is engineered to help you cut the work day down to size—or conquer the toughest trails. |
| General information | |
|---|---|
| Motorcycle name | Suzuki KingQuad 500AXi |
| Year | 2011 |
| Category | ATV |
| Price as new | US$ 7699. Euro 7990. UK £ 6499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 493.0 ccm (30.08 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 104.0 x 85.0 mm (4.1 x 3.3 inches) |
| Fuel system | Injection. Suzuki fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic ignition |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | CVT (V-belt), with high-/low-range, and reverse |
| Chassis, suspension, brakes and wheels | |
| Frame type | Independent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment. |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Independent, double wishbone, coil spring, oil damped |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 305.0 kg (672.4 pounds) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall height | 500 mm (19.7 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1210 mm (47.6 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 17.50 litres (4.62 US gallons) |
| Other specifications | |
| Starter | Electric |
| Factory warranty | 12 month limited warranty. |
| Comments | Optional power steering and camo paint. A limited edition also exists. |
