General information |
|
Model name
|

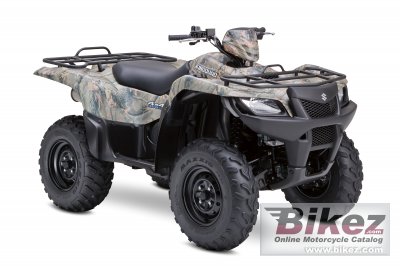

Suzuki KingQuad 450AXi 4x4 Camo |
|
Year of manufacture
|
2009 |
|
Type
|
ATV |
|
Rating
|
3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
493.0 ccm (30.08 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
84.0 x 82.0 mm (3.3 x 3.2 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent, double wishbone, coil spring, oil damped |
|
Rear suspension
|
Independent, double wishbone, coil spring, oil damped |
|
Front tire
|
25/8-AT12 |
|
Rear tire
|
25/10-AT12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
305.0 kg (672.4 pounds) |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1215 mm (47.8 inches) |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
1210 mm (47.6 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
17.50 litres (4.62 US gallons) |
|
Other specifications |
|
Color options
|
Camo (Realtree Hardwoods HD Enhanced) |
|
Starter
|
Electric |
|
Comments
|
2WD, 4WD and differential-lock 4WD. |
