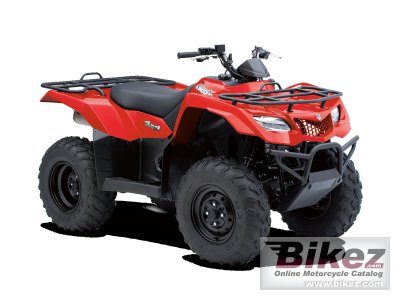

Suzuki KingQuad 400FSi 20122012 Suzuki KingQuad 400FSi specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Whether you’re tackling a tough job or a tough trail, you’ll appreciate the impressive torque and remarkably wide powerband. It also lets you select two- or four-wheel drive operation quickly and conveniently, which gives it the versatility to handle rough conditions. |
| General information | |
|---|---|
| Model name | Suzuki KingQuad 400FSi |
| Year model | 2012 |
| Type | ATV |
| Price as new | US$ 6199. UK £ 5549. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 376.0 ccm (22.94 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 84.0 x 82.0 mm (3.3 x 3.2 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic ignition (transistorized) |
| Lubrication system | Wet sump |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 5-speed forward constant mesh, with high-/low-range, and reverse |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Swingarm type, coil spring, oil damped |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 279.0 kg (615.1 pounds) |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 1145 mm (45.1 inches) |
| Ground clearance | 250 mm (9.8 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Starter | Electric |
| Factory warranty | 12 month limited warranty. |
| Comments | Optional camo paint. |
