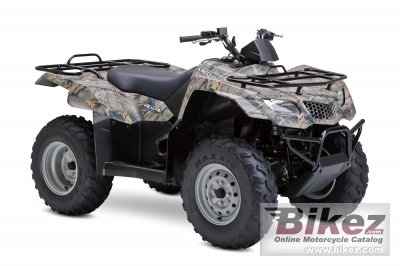

Suzuki KingQuad 400FS Camo 20092009 Suzuki KingQuad 400FS Camo specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Suzuki KingQuad 400FS Camo |
| Year | 2009 |
| Category | ATV |
| Price as new | US$ 5699. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 376.0 ccm (22.94 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 82.0 x 71.2 mm (3.2 x 2.8 inches) |
| Fuel system | Carburettor. Keihin CVK32 |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent, double wishbone, coil spring, oil damped |
| Rear suspension | Swingarm type, coil spring, oil damped |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall height | 1220 mm (48.0 inches) |
| Overall length | 2060 mm (81.1 inches) |
| Ground clearance | 250 mm (9.8 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 15.89 litres (4.20 US gallons) |
| Other specifications | |
| Color options | Camo |
| Starter | Electric |
| Comments | Selectable 2x4 or 4x4. |
