General information |
|
Model name
|

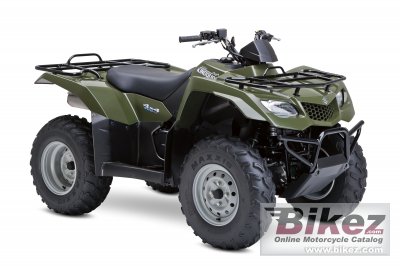

Suzuki KingQuad 400ASi |
|
Model year
|
2011 |
|
Category
|
ATV |
| Price as new | US$ 6199. UK £ 5749. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
376.0 ccm (22.94 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
84.0 x 82.0 mm (3.3 x 3.2 inches) |
|
Fuel system
|
Injection. Suzuki fuel injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic ignition (transistorized) |
|
Lubrication system
|
Wet sump |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Automatic variable ratio (V-belt), with high-/low-range, and reverse |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Suzuki´s innovative and exclusive T-shaped seat provides maximum rider mobility during sport riding and while tackling difficult terrain. |
|
Front suspension
|
Independent, double wishbone, coil spring, oil damped |
|
Rear suspension
|
Swingarm type, coil spring, oil damped |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
285.0 kg (628.3 pounds) |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1016 mm (40.0 inches) |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
1145 mm (45.1 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Factory warranty
|
12 month limited warranty. |
|
Comments
|
Optional power steering and camo paint. Two- or four-wheel drive operation with the flip of a handlebar-mounted lever. |
